. . . . . . Solidworks Software Allows us to Share or Create files that can be seen as a Virtual Part before Production begins.

Design Load Analysis

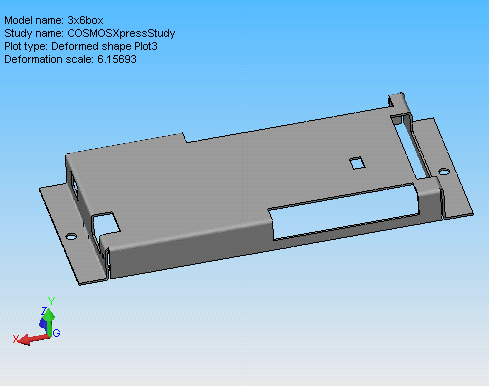

--- This metal housing has large openings for terminal blocks. A thumb pressure load was simulated to verify the housing would not bend under pressure. The material thickness that was selected did not bend even when over 50 pounds of direct pressure was applied at the center of the weakest point. Intermediate Automation supplied the Customer with a Final Design that was a Strong Metal Housing with Minimal Shipping Weight.

Click Here to see the Product Above

Plastic Housings

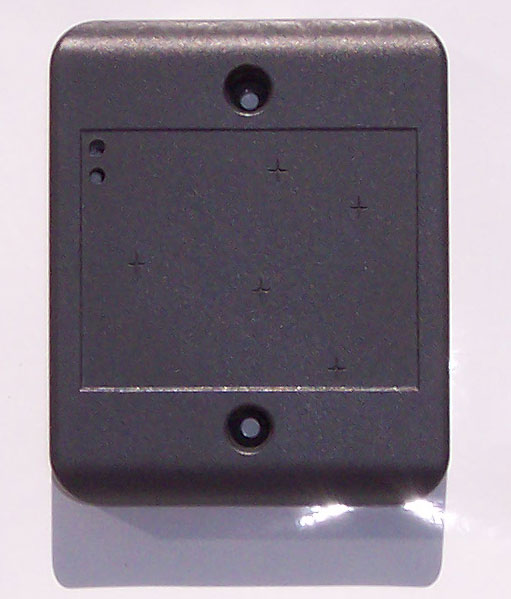

Our Customer ordered 500 units of this Housing. Our Rapid Production covered sales while injection molds were being made.

Click for sample RTV Mold

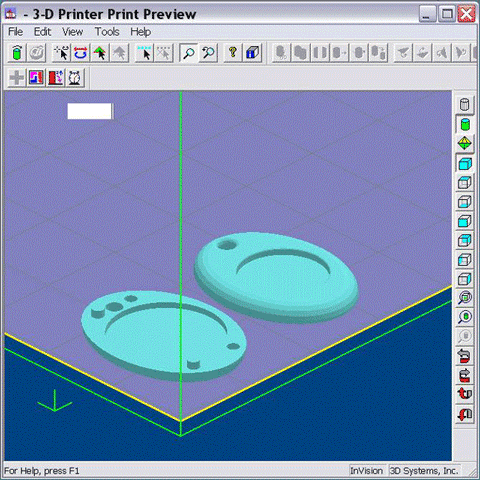

Stereo Lithography --- Our 3D Printer is used to create original parts from an .STL file The Original Part is used to make many RTV Molds to support Rapid Production of this part.   This is a picture of the original that the printer creates -and- the print screen before the file is sent to the printer.   ..... ..... Production Parts are removed from the RTV Mold then snapped together.

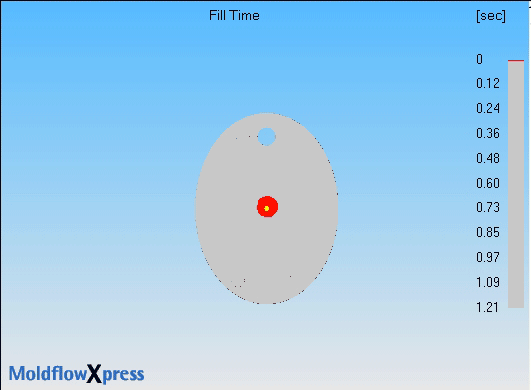

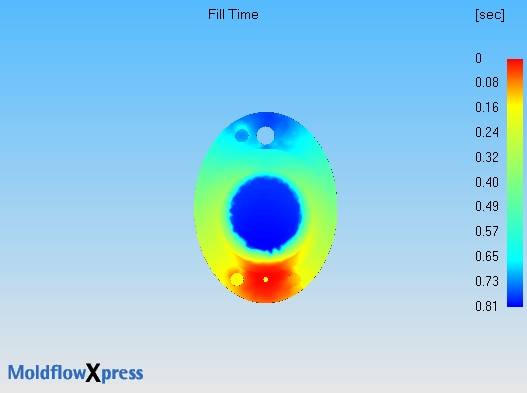

Mold Flow Analysis Mold Flow Analysis can be used to determine the best Fill Point for this part.   The small yellow dot is the Fill Point for both examples.   The Graph shows that when the Fill Point is moved down lower on the part Fill Time is reduced from 1.21 seconds to .81 seconds WOW The new fill point will now produce 4 parts in the same time the one in the center only makes 3!     Tim Novak Owner/ BSME MSIE Intermediate  Automation    16321 Valle Vista Way  Riverside, CA  92506 Tel/fax: 951-789-8765 Email: Sales4ia@aol.com Precision Casting RTV Molds Consultant Engineer
