Design Load Analysis
---

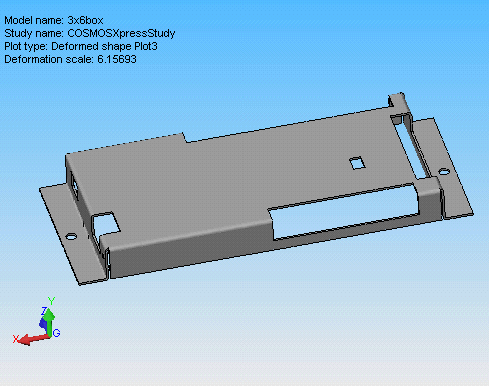

This metal
housing has
large openings
for terminal
blocks.
A thumb
pressure load
was simulated
to verify the
housing would
not bend under
pressure.
The material
thickness that
was selected
did not bend
even when over
50 pounds of
direct pressure
was applied.
Intermediate Automation supplied the Customer with a Final Design that was a Strong Housing with Minimal Shipping Weight.
|
|
